Motorised blinds Battery operated

     Features

  • Quiet, smooth operation.
  • Integrated radio receiver and Rechargeable Battery
  • Easy setting of limits (Top and bottom stop positions) from the remote, Timer Control Option
  • Single and group command possible with up to 16 transmitters per motor
  • Can be supplied as a motorised roller kit c/w Tube & Brackets on a 38mm Tube or supplied with adapters to suit other Roller Blind systems
  • Can connect to a Smartphone using the USB Gateway and be controlled from anywhere in the world


Battery roller blind video

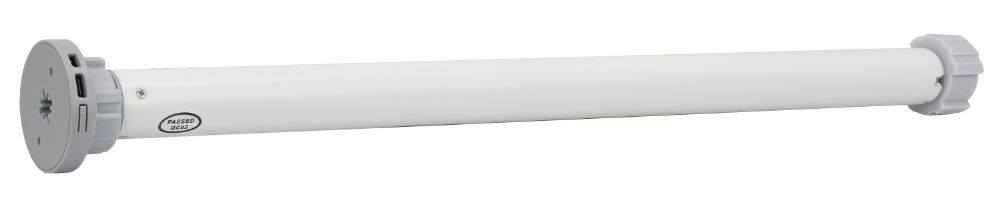

Rechargeable roller blind motor

Roller blind motor - Why battery?

Electric cabling is often an afterthought when it comes to motorising roller blinds, leaving you with the notion that it is too late to motorise your blinds.  Thanks to modern technology of battery motors even that scenario is no longer a problem.  The TQL25 remote controlled roller blind motor comes with a built in rechargeable Lithium-Ion battery as part of a compact and neatly integrated system. The first of its kind in the UK it was designed for convenience in today's increasing automation needs.  Quiet in operation it is a flexible all in one motor for every situation and ideal for those awkward places where running cable is not an option.   With the introduction of the USB gateway (CS3108) in 2022 the Raex range, including battery motors, can now all be controlled via a smart phone.

Electric blinds battery powered

As mentioned before, some of the advantages of integrated battery motors is that there is no need for wires, power packs, external battery wands and in particular the cost that comes with running wire that is required with a traditional mains powered system, if you are at new build stage then running cable is good option, but if you have all your decorating finished and don't want to start chiseling out walls then battery is the next best thing.  You just insert the motor into the tube and then fit the roller blind in the normal way. The TQL25 is self-contained with a small charging point on the head of the motor for easy access where it can be charged in its location.  Charges, based on one open and one close per day can last 6 - 12 months, depending on size and weight of the blind, before it requires recharging again.

The TQL25 is an affordable and completely Child Safe solution- with no hanging cords or loops that are becoming more of a concern in recent years.

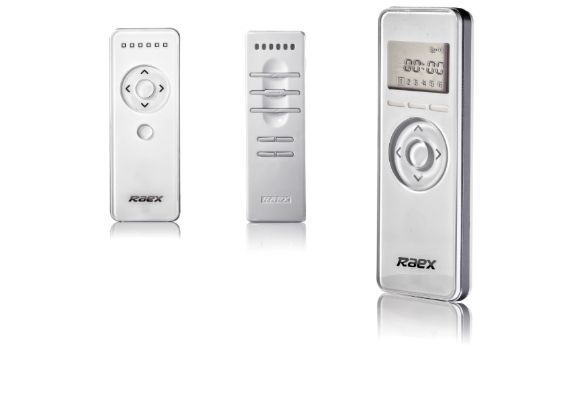

Raex remote controls

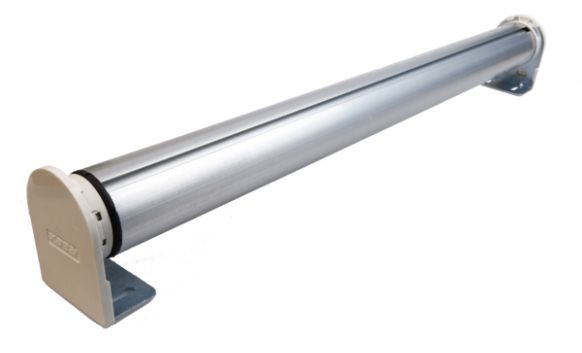

Motorised roller blind assemblies

Automatic Roller Blind Assemblies

In some cases it is not always desirable to replace the whole window blind to make it motorised.  You may want to keep the fabric that you already have and just make it a remote control blind.   In this scenario you have two options, you can either insert a motor to you existing blind, providing the tube is compatible with the dimensions of the motor, or use one of our motorised roller assembly where you can fix your fabric directly to the tube.  The TQL25 battery motor fits into a 38mm and 40mm dia tube, so you may already have a blind that is compatible. We also offer this service for electric roller blind assemblies using 45mm, 60mm and 80mm dia tube systems depending on the size of the blind.

Remote control Blinds - Solar Powered

The benefits and problem free aspects of the rechargeable motor system are easy to understand but sometimes, even with a battery system there is one issue that is a concern when it comes to recharging.  It is not always easy to access your blind to recharge it.  Some systems do not have power to them because they are in a place where it is difficult to get to like over a stairway or a high placed window.

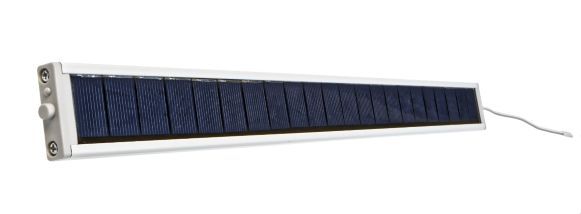

For those tricky out of the way places there is an answer, you can use a dedicated Solar Panel to trickle charge the Lithium-Ion battery motor.   Simply fit the solar panel during the initial installation and plug it into the motor, then you can leave it to the sun to keep you going.

Solar powered blinds

Consultancy Service:

With over 25 years of experience in powering electric Blinds UK, automation and design we can help find the best solution for your project and if there isn't one currently on the market, in most cases, we will develop you one. Call our office more details
