M100 and the M130

Heavy Duty Electric Curtains

Features

  • Quiet operation
  • Electro - Mechanical Limits
  • Curtains can be opened manually in case of power failure by disconnecting the motor
  • High Torque AC motor
  • Used with either and External wall switch or smart system
  • Made To Measure Fully Assembled Tracks
  • Suitable For Straight, Continuous Curve and Bay Windows
  • Compatible With Home Automation, Smart Systems and Building Management
  • Durable Self Lubricating Design

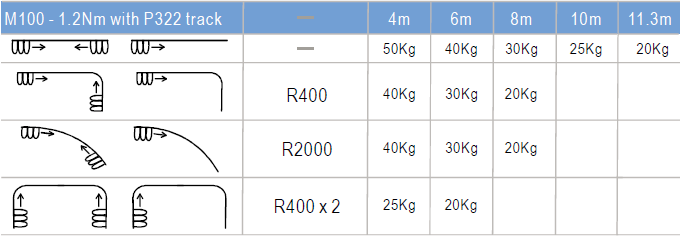

M100 Curtain load capacity

Hard Wired M100 and M130 (4 Wire)

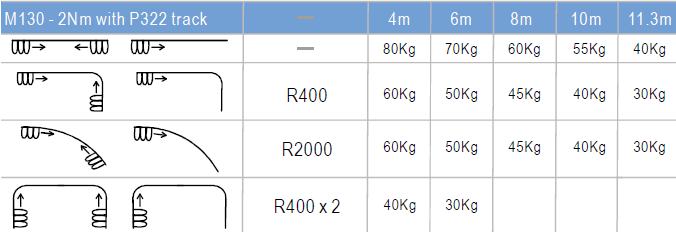

The M100 heavy duty hard wired curtain track system is one of several heavy duty curtain track motors that we have incorporated into range. Models that are designed to cope with much heavier curtains include the M130.  Both are perfect for large heavy domestic, stage and commercial applications. This range of electric motor systems is ideal for wiring into home automation and building management systems that use mains switching. They are also ideal for large bay windows and generally shaped curtain applications.

In more extreme cases where the curtains are either exceptionally large, very heavy or both the M100 and M130 high torque motors can be dual mounted to further increase there pulling capabilities. This means you have two motors working in unison on the same track.

Once set the motor is hidden from view as it is covered by the curtain making the finished product very aesthetically pleasing.


Price

Curtains in motion
